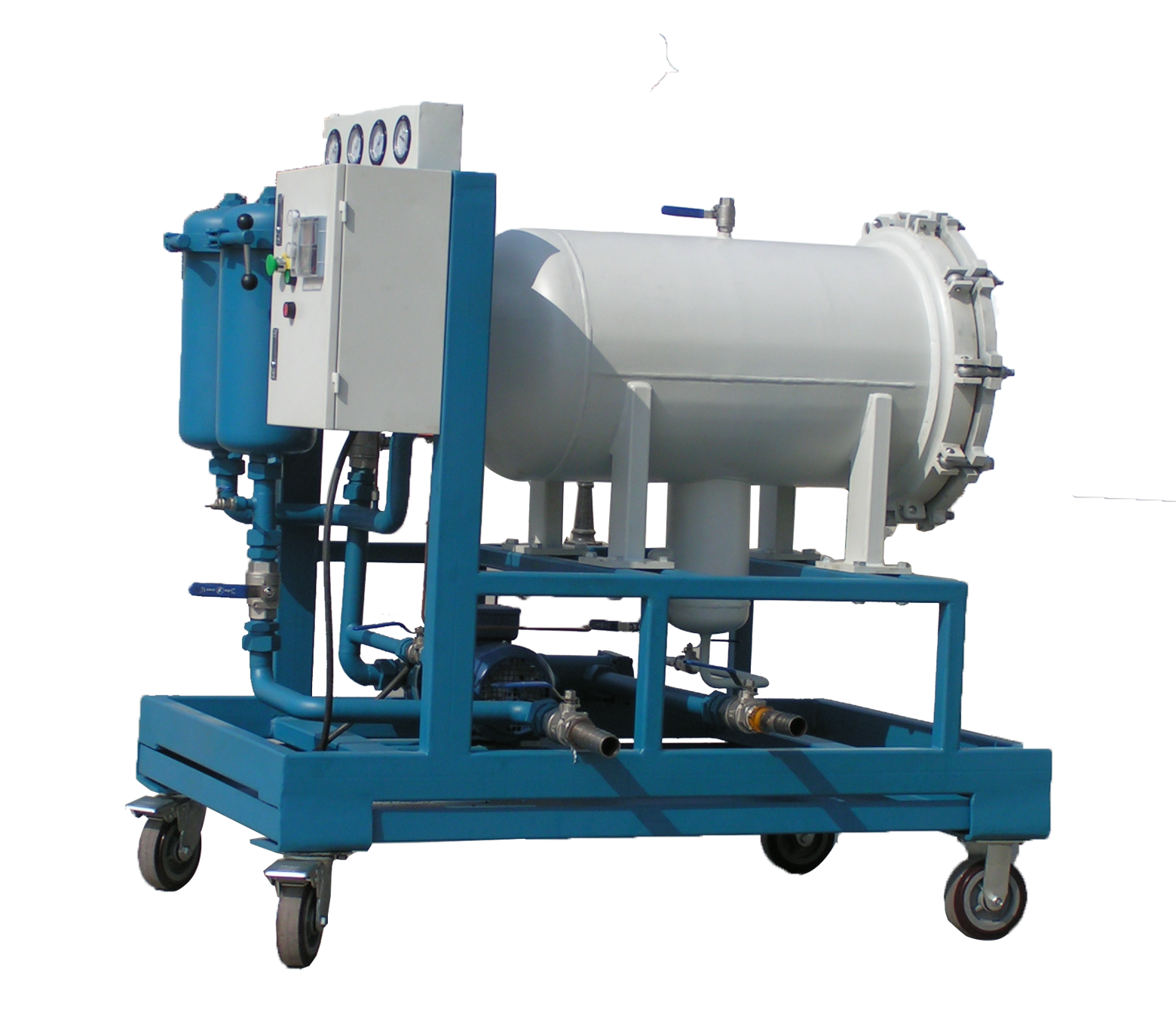

Purificateur d'huile sous vide série HNP PALL HNP021

Application:
● Turbine oil and transformer oil purification
● The removing water and impurities of hydraulic oil lubrication system
● Access hydraulic lubrication system, comprehensively improve the cleanliness of the system


Technical data:

Model	SLYJ-25J-*/**		SLYJ-50J -*/**	SLYJ-100J-*/**	SLYJ-200J-*/**
Rated flow (L／min)	25		50	100	200
Rated pressure(MPa)	0.6
Pressure loss(MPa)	≦0.1
First class micron(μm)	100
Second class micron(μm)	10,20,40
Third class micron(μm)	3,5,10
Dehydration(ppm)	≦100
Motor Power (kw)	0.75	1.1		2.2	5.5
Weight (kg)	220	280		360	480
Dimensions (mm)	1200x600x1200	1600x880x1400		1800x1060x1500	2500x1200x1800


Note: * two fine filter accuracy, such as 003 to 3 microns.
** For the applicable media omitted: general hydraulic oil;
BH: water - glycol
V: phosphonate hydraulic fluid
*** Adapt to the medium viscosity ≤100cSt
