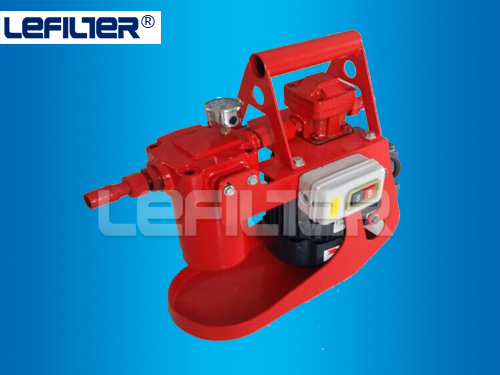

Unité de filtration HYDAC OF7S10P1M1B10E / -C1
-
marque
LEFILTER -
modèle:
-
brève introduction
Unité de filtration HYDAC
Télé:+ 86-373-2618077
E-mail:export@lefilter.com
Présentation
Product Description
The filtration unit OF7 is designed as a portable service unit for filling hydraulic systems,
flushing small hydraulic systems and for offline filtration.As an option, the OF7 can be
ordered with the ContaminationSensor CS 1000. This makes it possible to simultaneously
monitor the particle contamination in the oil. The cleanliness class is given according to ISO,
SAE and NAS classifications.
flushing small hydraulic systems and for offline filtration.As an option, the OF7 can be
ordered with the ContaminationSensor CS 1000. This makes it possible to simultaneously
monitor the particle contamination in the oil. The cleanliness class is given according to ISO,
SAE and NAS classifications.
Advantages
1.Improvement in service life for both components and system filters
2.Extension of oil lifetime
2.Extension of oil lifetime
3.Greater machine availability
4.Simple operation
5.Compact design
4.Simple operation
5.Compact design
6.Option: continuous monitoring of oil cleanliness during the cleaning
process through the use of CS 1000 (OF7CM)
7.Option: built-in protection against dry running and control cable for
remote maintenance (OF7K)
8.Option: version for viscosities up to 1000 mm²/s and 180 filter cartridge
(OF7S90Px)
Parameter
OF7 S 10 P 1 M 1 B 10 E /-C1
Max. flow rate:15 l/min
Pump type:Vane pump
Operating pressure:3.5 bar max
Max. flow rate:15 l/min
Pump type:Vane pump
Operating pressure:3.5 bar max
Permitted suction pressure at suction port:-0.4 bar to +0.6 bar
Viscosity range:5 ... 350 mm²/s
Permitted operating fluid:Mineral oil (DIN 51424)
Fluid temperature:0 ... 80 °C
Ambient temperature:-20 ... 40 °C
Seals, gaskets:NBR
Protection class:IP 54
Power cable, length:2.8 m
Length of hoses:2.5 m
Hoses:Suction hose NW 20 with lance
Pressure hose NW 16 with lance
Weight:12.5 kg
Viscosity range:5 ... 350 mm²/s
Permitted operating fluid:Mineral oil (DIN 51424)
Fluid temperature:0 ... 80 °C
Ambient temperature:-20 ... 40 °C
Seals, gaskets:NBR
Protection class:IP 54
Power cable, length:2.8 m
Length of hoses:2.5 m
Hoses:Suction hose NW 20 with lance
Pressure hose NW 16 with lance
Weight:12.5 kg
Case
Application
OF7 S 10 P 1 M 1 B 10 E /-C1 is applied into:
Email: filtersales03@le-filter.com
Whatapp/wechat/mobile: 0086 18695927657
Skype:filtersales03
Filtered or unfiltered filling of hydraulic systems
Temporary offline filtration for hydraulic systems
Filtered or unfiltered transfer of fluids
Contact me:
Email: filtersales03@le-filter.com
Whatapp/wechat/mobile: 0086 18695927657
Skype:filtersales03
